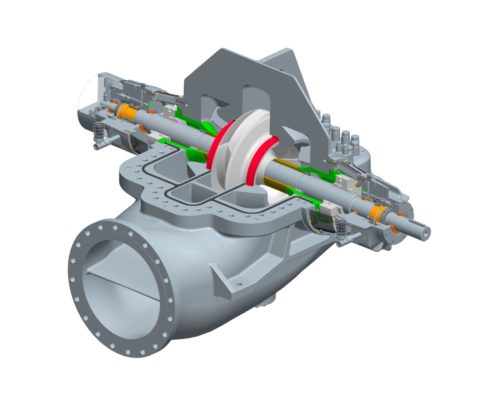

Our basic API 610 type BB1 pumps are foot mounted, axial split, single stage, double suction, between bearing pumps. The pump and motor are flexibly coupled and installed on a common baseplate. The axial split casing design allow removal of the rotor assembly without disturbing the driver, coupling hubs or casing nozzle connections.
Meet all API 610 requirements
Side-side nozzle design
Double volute to reduce radial forces
Double suction for low NPSHR characteristics and axial impeller balance
Seal area meet API 682
Mechanical seals and seal systems as per API682
Vertical mounting and other design options available
All metallurgies available
Design to NORSOK and customer specifications available
Q (m3/h) 10 000
P (barg) 25/40
dH (m) 140
T (⁰ C) +150
Pumps are the core of the business, both as single units or miscellaneous pump packages. Delta-p also performs engineering, process design, manufacturing and testing of complete equipment packages, both for low pressure and high pressure systems.
