CENTRIFUGAL PUMPS, API 610 BB4

General

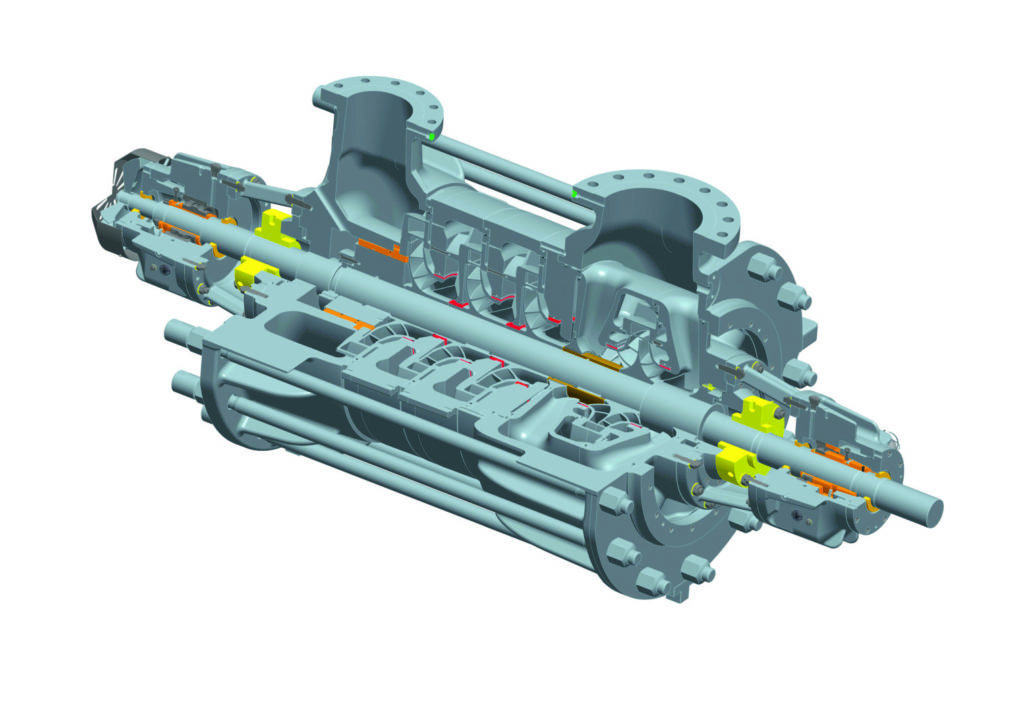

Our API 610 type BB4 pumps are multistage, centre line mounted, radial split, single or double suction, between bearing pumps. The pump and motor  are flexibly coupled and installed on a common baseplate. The pump design is available in two executions, inline with balance piston or in back to back (opposed) impeller design. Due to the ring section casing design, the piping must be dismantled for removal of the rotor assembly.

Design features

  • Meet partly API 610 requirements
  • Top-top nozzle design
  • Double volute design
  • Single entry or Double entry impeller for low NPSHR characteristics
  • Rotor axially balanced with balance piston or back to back design of impellers
  • Seal area meet API 682
  • Mechanical seals and seal systems as per API682
  • Hydrodynamic or antifriction bearings
  • Other design options available
  • All metallurgies available
  • Design to NORSOK and customer specifications available

BB4 Performance

Q (m3/h)  900/600
P (barg)  300/250

dH (m)  2800
T (⁰ C)  +200
