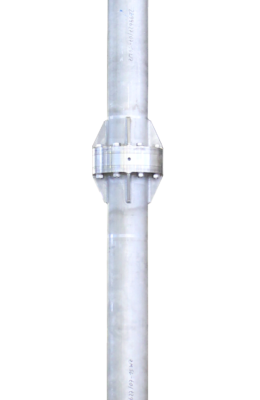

CENTRIFUGAL PUMPS, API 610 VS1

General

Our API 610 type VS1 sump pumps are vertically suspended, single casing, radial split, single or multistage, diffuser pumps with discharge trough the column. The pump and motor are flexibly coupled and supported by a mounting flange.

Design features

  • Meet API 610 requirements
  • Side interface nozzle
  • First stg. Impeller with low NPSH design
  • Journal bearing distances as per std
  • Seal area meet API 682
  • Mechanical seals and seal systems as per API682
  • Oil lubricated antifriction bearings
  • Other design options available
  • All metallurgies available
  • Design to NORSOK and customer specifications available

VS1 Performance

Q (m3/h)

600/10 000
P (barg)    63

dH (m)  600/350
T (⁰ C)  +180
